Home / Products / Keystone Jack / CAT5E/CAT6/CAT6A/CAT7 Zinc Alloy Shielded Up And Down Tool-Free Module

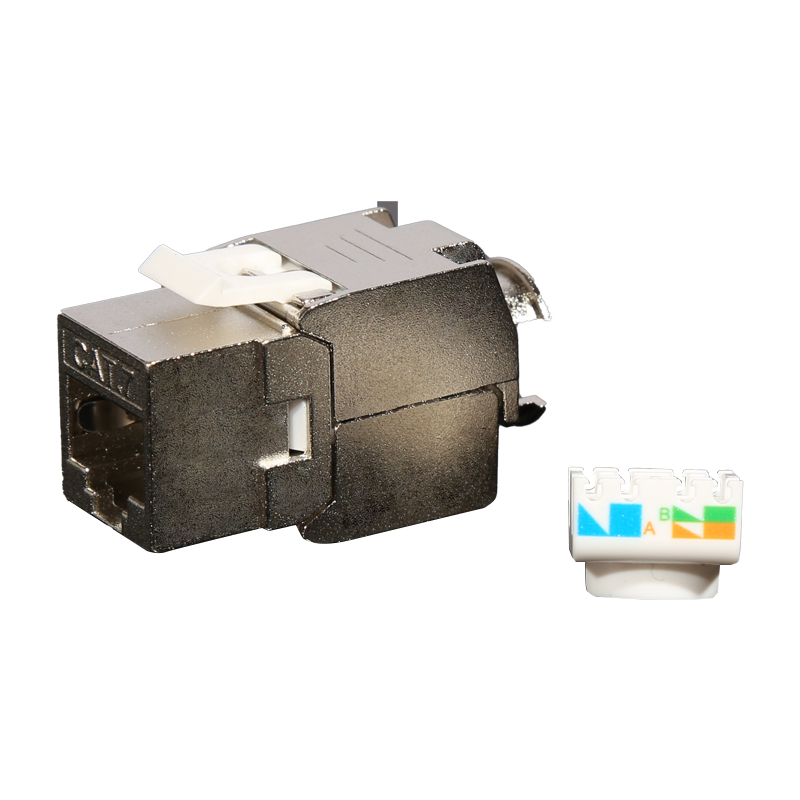

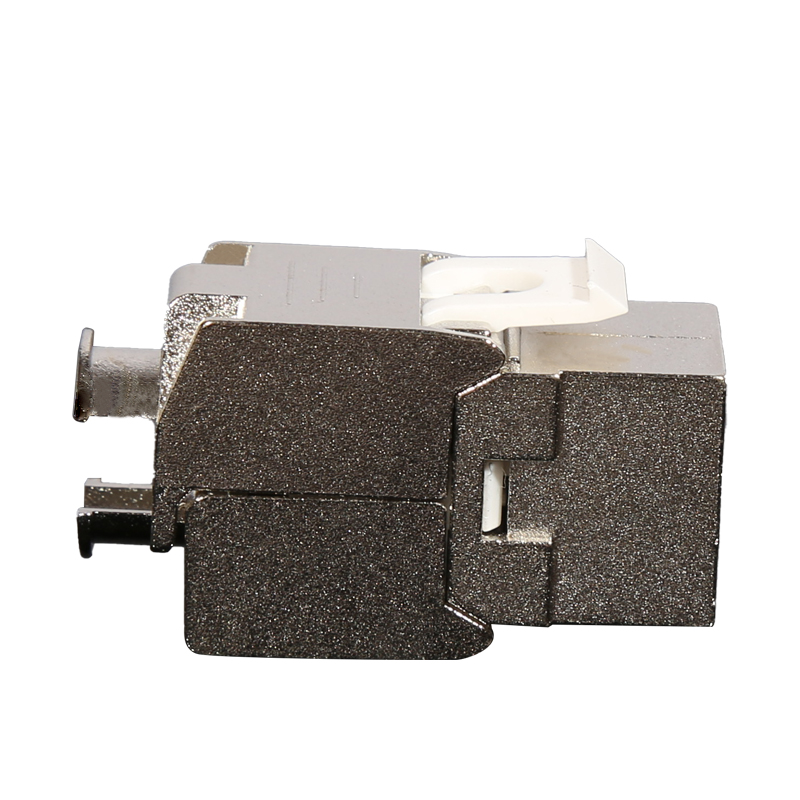

CAT5E/CAT6/CAT6A/CAT7 Zinc Alloy Shielded Up And Down Tool-Free Module

The shielded information module requires a shielded network cable. In addition to the normal 8-core cable that needs to be terminated, the shielded metal layer of the shielded network cable needs to be connected to the metal shell of the shielded module. The shielded shell adopts an integral die-casting process and a fully enclosed shielding structure to effectively prevent electromagnetic interference. The dustproof door design far exceeds the Category 6 transmission standard, with a Category 6 transmission performance of 10GB per second. The end interface shell material is made of high-strength PC
material, the IDC wire post clip is environmentally friendly phosphor bronze, and the termination times are more than 300 times. The 8 contact gold pins are made of environmentally friendly phosphor bronze, gold-plated 50U, and the number of plug-in and unplug times is 1500. The unique tool-free design facilitates construction, and the rear circular protection groove can ensure that the cable does not bend excessively or fall off after termination. It has backward compatibility and can be backward compatible with lower-category systems to avoid user investment losses.

PREV：CAT5E/CAT6/CAT6A/CAT7 Zinc Alloy Shielded Up And Down Tool-Free Module (With Dust Door)NEXT：CAT5E/CAT6 Shielded Pass-Through Module
Description Company

1. IDC: phosphor bronze, nickel-plated (50uinch), applicable wire diameter is 0.4~0.6mm, and the plug-in life is not less than 250 times;
2. 8-wire pin: phosphor bronze, gold-plated (50uinch), plugs and sockets can be repeatedly plugged and unplugged for not less than 750 times;
3. Flame retardancy: plastic parts are made of PC injection molding, meeting international standards;
4. Contact resistance: not more than 2.5mΩ under normal atmospheric pressure (excluding body resistance);
5. Insulation resistance: not less than 1000MΩ under normal atmospheric pressure;
6. Dielectric strength: DC 1000V (AC, 700V) no breakdown and arcing within 1 minute;
7. Identification: complete and clear identification management system;
8. Standard: designed and manufactured according to international standards ISO/IEC11801; TIA/EIA568.
9. Shell: zinc alloy die-casting, nickel-plated surface, fully enclosed shielding structure
10. Transmission performance: 10GB per second
11. Scope of application: suitable for network engineering and home decoration
