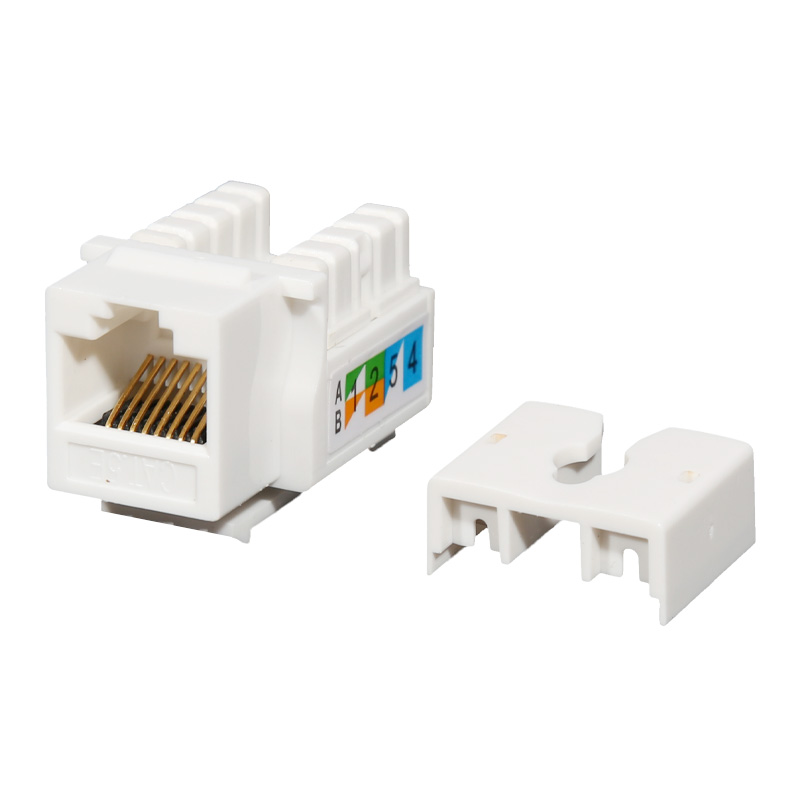

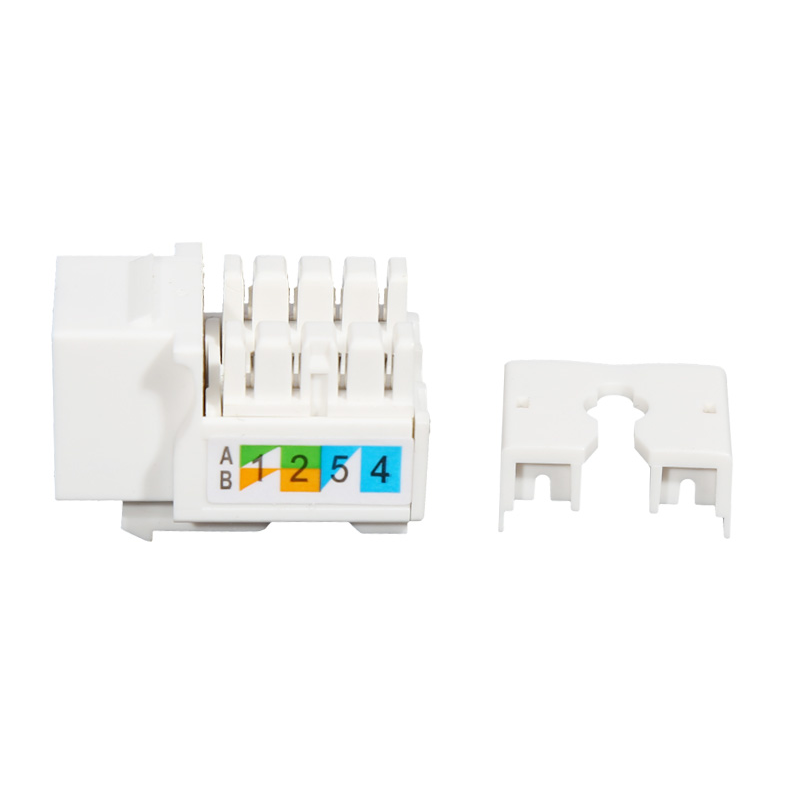

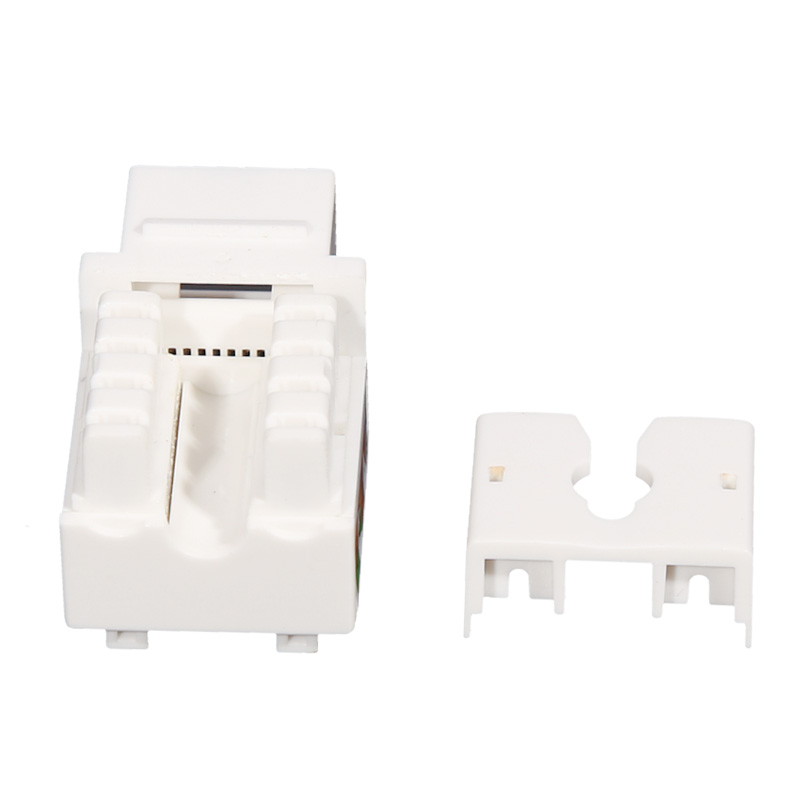

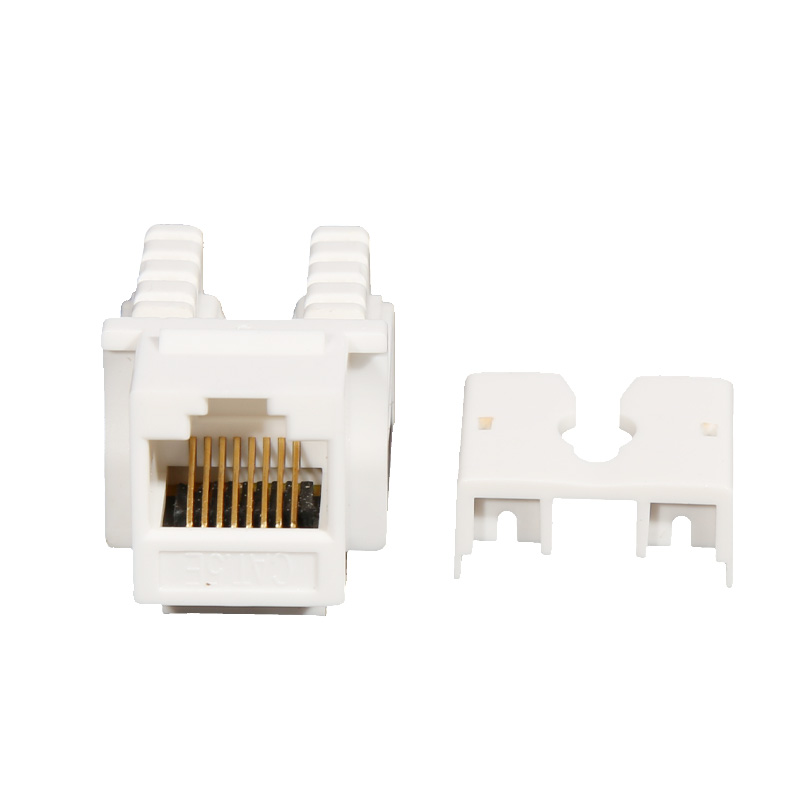

CAT5e/CAT6 Unshielded Module (90°)

The Category 6 unshielded module meets the requirements of broadband high-performance applications and complies with TIA/EIA-568B.2-1, EN50173, ISO/IEC 11801 for Category 6 unshielded permanent link transmission indicators of 250MHz. It fully supports all voice communication systems, 10Base-T, 16Mbps, 100Base-Tx, 1000Base-Tx, 155Mbps, and 622Mbps ATM, multimedia, and other high-speed applications. The new dual-use IDC design supports 110 and Krone wiring methods. The IDC reed and PCB board adopt cold crimping technology to ensure reliable contact. The contact pin can withstand at least 750 plug-ins and pull-outs: and the IDC terminal can withstand at least 250 crimpings. The module uses a 90-degree wiring method and the number of interfaces is RJ45.

PREV：CAT5e/CAT6/CAT6A Unshielded Tool-Less ModuleNEXT：Cat6 Unshielded Module (180°)
Description Company

1. IDC: phosphor bronze, nickel-plated (50uinch), applicable wire diameter is 0.4~0.6mm, and the plug-in life is not less than 250 times;
2. 8-wire pin: phosphor bronze, gold-plated (50uinch), plugs and sockets can be repeatedly plugged and unplugged for not less than 750 times;
3. Flame retardancy: plastic parts are made of PC injection molding, meeting international standards;
4. Contact resistance: not more than 2.5mΩ (excluding body resistance) under normal atmospheric pressure;
5. Insulation resistance: not less than 1000MΩ under normal atmospheric pressure;
6. Dielectric strength: DC 1000V (AC, 700V) has no breakdown and arcing within 1 minute;
7. Identification: Complete and clear identification management system;
8. Standard: Designed and manufactured according to international standards ISO/IEC11801; TIA/EIA568.
9. Scope of application: Applicable to network engineering and home decoration.
