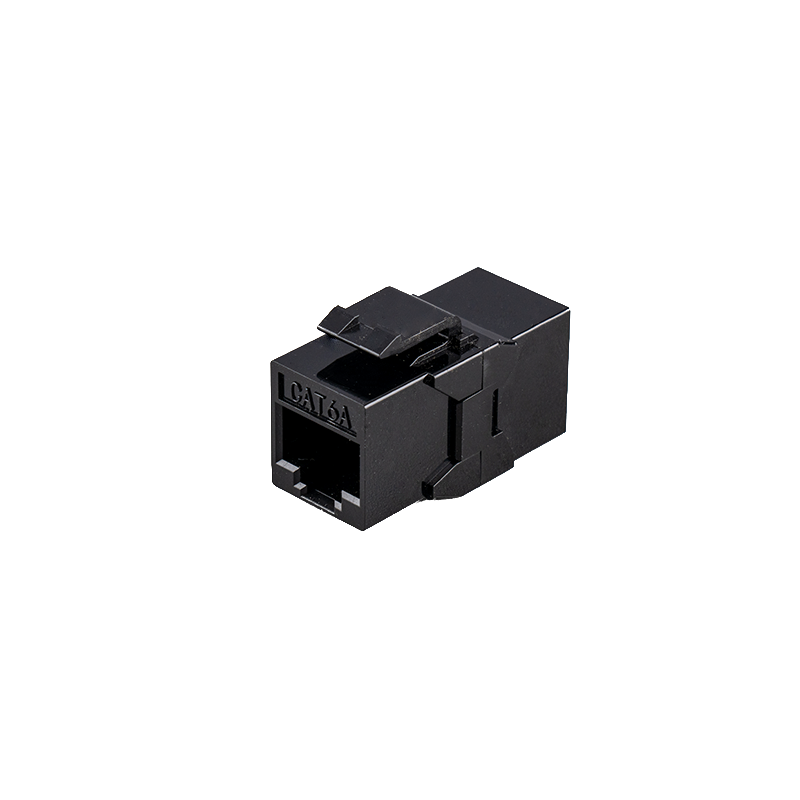

CAT5E/CAT6/CAT6A Unshielded Angle Pass-Through Module

The performance complies with ISO/IEC11801, ANSI/TIA/EIA568-B.2-1, and YD/T926.3-2009 standards.
Both ends are RJ45 interfaces, which are convenient and quick to connect; built-in crosstalk compensation PCB (circuit board), improve NEXT (near-end crosstalk) margin, support 10 Gigabit Ethernet (10000MBPS), and increase the transmission frequency by 250MHZ; the contact parts are made of high-hardness phosphor bronze, and the nickel-plating and gold-plating process is adopted, which is corrosion-resistant, reduces contact resistance, and has a plug-in life of more than 800 times, which prolongs the service life of the module and ensures stable data transmission; the unique angle design makes the construction more convenient and flexible

PREV：CAT5E/CAT6 Shielded Pass-Through ModuleNEXT：CAT5E/CAT6 Unshielded Pass-Through Module
Description Company

1. 8-wire pin: phosphor bronze, gold-plated (50uinch), plugs and sockets can be repeatedly plugged and unplugged for no less than 800 times;
2. Flame retardancy: plastic parts are made of PC injection molding, meeting international standards;
3. Contact resistance: no more than 2.5mΩ (excluding body resistance) under normal atmospheric pressure;
4. Insulation resistance: no less than 1000MΩ under normal atmospheric pressure;
5. Dielectric strength: DC 1000V (AC, 700V) no breakdown and arcing within 1 minute;
6. Standard: designed and manufactured according to international standards ISO/IEC11801; TIA/EIA568.
7. Scope of application: suitable for network engineering and home decoration
