Home / Products / Patch Panel / CAT5E/CAT6/CAT6A Unshielded 24-Port Patch Panel

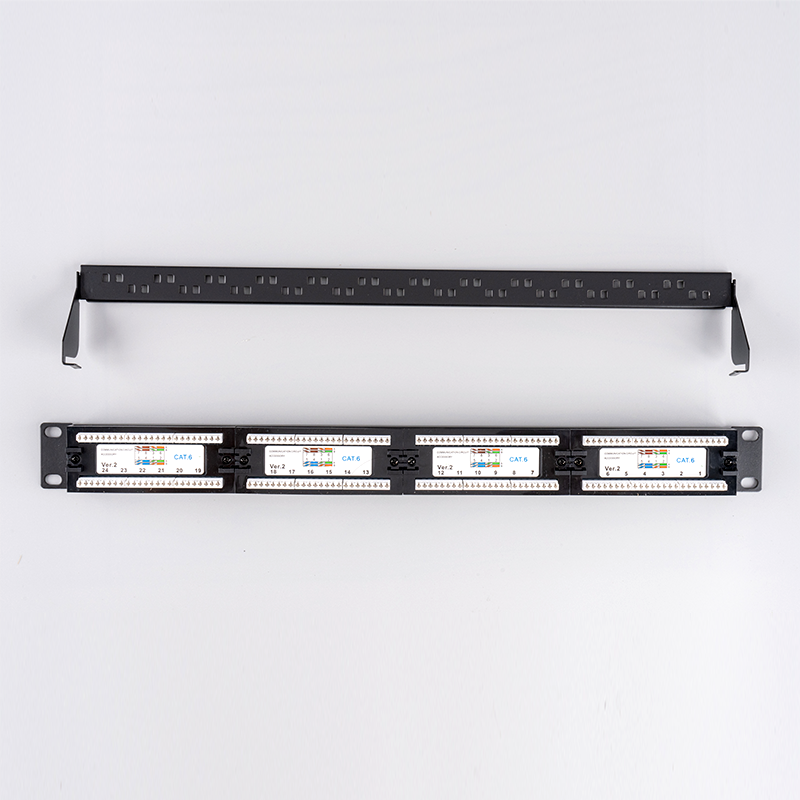

CAT5E/CAT6/CAT6A Unshielded 24-Port Patch Panel

This CAT5E/CAT6/CAT6A unshielded 24-port patch panel not only has better electrical performance but also has better durability and convenient management functions. Our CAT5E/CAT6/CAT6A unshielded 24-port patch panel especially uses carbonated polyester wire posts and phosphor bronze wire terminals. The combination of the two not only ensures the accuracy and stability of the wire punching but also gives the patch panel the characteristic of reusability. The product adopts a thickened cold-rolled steel frame one-piece molding design to ensure its durability and ability to withstand various stresses in various complex network environments. At the same time, the one-to-one precise alignment technology is adopted, which greatly simplifies the wiring process and improves the wiring efficiency. This CAT5E/CAT6/CAT6A unshielded 24-port patch panel is suitable for various network engineering projects, including data centers, office buildings, schools, hospitals, etc.

PREV：CAT5E/CAT6/CAT6A Unshielded 48-Port Patch PanelNEXT：No next article
Description Company
  1. The RJ45 interface is phosphor bronze, gold-plated 50U, with a plug-in and unplug times of more than 750 times. Good conduction performance makes data transmission more stable;
  2. The carbonated polyester wire post is equipped with phosphor bronze wire terminals, which can be reused many times and the number of wire bonding is more than 250 times;
  3.  The thickened cold-rolled steel frame is integrally formed, industrial-grade material selection, strong and durable, and has a stronger tensile force between glands;
  4. The rear cable management rack has one-to-one precise positioning, which is convenient for cable fixation and management;
  5. The line sequence diagram is by the 568A/568B common domestic and foreign representation, which is clear at a glance and meets the requirements of multiple types of wiring;
  6. The detachable cover plate can be replaced with labeling labels for convenient labeling management;
  7.  Size: 1U (45mm*480mm), 19 inches (483mm), 24 ports
  8. The contact pin adopts a high-low pin design to maximize the line pair balance and achieve backward compatibility through a high margin. It is backward compatible with CAT6 and below systems, reducing user losses.
